2 Sets 1000V Multi Point Connection Embedded Solar PV Connectors Set Built in Fuse Connector IP68 Waterproof Solar & Wind Power Parts & Accessories(30A)

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
How to Use:
Easily plug and unplug by pressing both sides of the built‑in lock on the connector with your fingers.

Specification:
Item Type: Solar PV Connectors Set
Material: PPO Plastic Body, Copper Tin Plated Hardware, PV Special Fuse
Specifications (rated Current): 10A 15A 20A 30A
Model: MC F
Rated Voltage: 1000V
Absolute Green Material: PPO Material
Conductor Material: Copper Tinned
Ambient Temperature: -40℃~+90℃
Product Temperature Resistance: -40℃~+135℃
Security Level: DCII
Waterproof Grade: IP68
Contact Resistance: ≤0.35mΩ
Connection System: Multi Point Connection
Self Locking System: Embedded
Pull out Force: ≥50N
Insertion Force: ≤50N
Resistance Level: Ul94 VO
Scope of Application: Solar Panel Connection
Weight: Approx. 168g / 5.9oz

Package List:

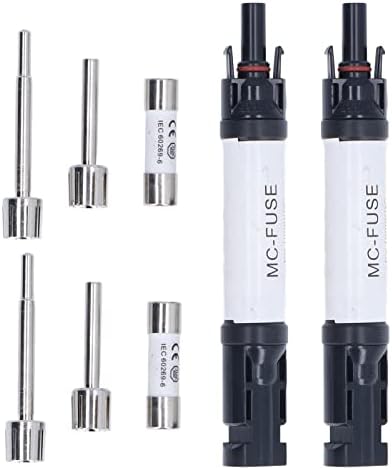

2 x Solar PV Connectors Set(8 Loose Parts)

How to use: The solar panel photovoltaic connector can be easily plugged and unplugged by simply pressing the two sides of the built-in lock on the connector with your fingers.
IP68 Waterproof: The solar photovoltaic connector set has good waterproofness, and the waterproof level reaches IP68.
Anti-UV: 1000V solar photovoltaic connectors have excellent anti-aging and anti-ultraviolet capabilities, and are very durable. Product temperature resistance: -40℃~+135℃
High Quality Material: PPO plastic body, copper tinned hardware, PV special fuse. Optional specifications (rated current): 10A 15A 20A 30A, rated voltage: 1000V
