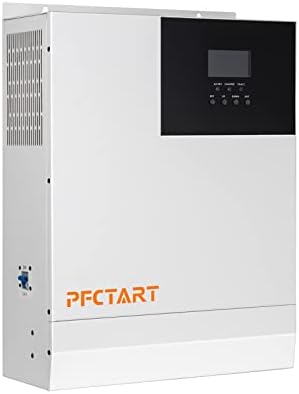

3000W DC 24V Pure Positive Dazzle Wave Solar Inverter, 120V AC Output Hybrid Solar Inverter Charger, 40A AC Battery Charger with 60A MPPT Solar Charge Controller (3000W 24V)

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
Technical parameters
AC mode
Rated input voltage：110/120Vac
Input voltage range：(90Vac-140Vac)±2%
Frequency：50Hz/ 60Hz (Auto detection)
Frequency Range：47±0.3Hz ~ 55±0.3Hz (50Hz)/57±0.3Hz ~ 65±0.3Hz (60Hz);
Overload/short circuit protection：Circuit breaker
Efficiency：>95%
Conversion time (bypass and inverter)：10ms (typical)
AC reverse protection：Available
Maximum bypass overload current：40A
Inverter mode
Output voltage waveform：Pure sine wave
Rated output power (VA)：3000
Rated output power (W)：3000
Power factor：1
Rated output voltage (Vac)：120Vac
Output voltage error:±5%
Output frequency range (Hz):50Hz ± 0.3Hz/60Hz ± 0.3Hz
Efficiency:>92%
Overload protection:(102% (110% Load >125% ±10%: report error and turn offthe output after 5 seconds;
Peak power：6000
Loaded motor capability：2HP
Output short circuit protection：Circuit breaker
Bypass breaker specifications：40A
Rated battery input voltage：24V (Minimum starting voltage 22V)
Battery voltage range：20.0Vdc~33Vdc ± 0.6Vdc (Undervoltage alarm/shutdown voltage/overvoltage alarm /overvoltage recovery… settable on LCD screen)
Power saving mode：Load ≤50W

AC charging
Battery type：Lead acid or lithium battery
Maximum charge current：40A
Charge current error：± 5Adc
Charge voltage range：20.0Vdc~33Vdc
Short circuit protection：Circuit breaker and blown fuse
Circuit breaker specifications：40A
Overcharge protection：Alarm and turn off charging after 1 minute
PV charging
Maximum PV open circuit voltage：100Vdc
PV operating voltage range：30-100Vdc
MPPT voltage range：30
【Multi-function in one】PFCTART all-in-one solar charging inverter Built-in four charging modes, solar only, solar priority, AC priority, solar hybrid charging, 3 LED indicators, dynamic display of system data and operation status at any time
【Safe and efficient】ON/OFF boat switch control AC safety output, with complete short circuit protection, over-voltage protection, overload protection, backfill protection, with only adjustable speed fan, efficient heat dissipation, extend system life, in addition, with point saving function, effectively reduce no-load loss.
【Self-activated battery】 PFCTART 5000 Watt DC 48 volt Solar Inverter is compatible with 48V AGM/Sealed, Gel, Flooded, Lithium batteries and a User Mode for custom PFCTART 5000 Watt DC 48 volt Solar Inverter is compatible with 48V AGM/Sealed, Gel, Flooded, Lithium batteries and a User Mode for custom inputs to work with virtually all battery types
【Professional brand, trustworthy】PFCTART company focus on research and development of new energy products company, in the field of more than ten years of professional manufacturers, and in the eastern west of the United States with warehouses, can be delivered within five days to anywhere in the United States.
