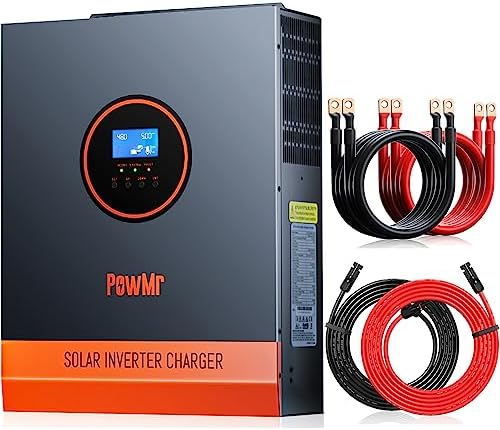

5000W Solar Inverter 48V 110V Built in 80amp MPPT Controller, Max 5000W 500V PV Input +20 Feet Solar Cable+1 ft 4Awg Battery Cable

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave
Lithium battery activation by PV solar or mains, allowing access of lead-acid battery and lithium battery.
Two output modes: mains bypass and inverter output; uninterrupted power supply.
Available in 4 charging modes: Only Solar, Utility Priority, PV Priority, Utility & Solar hybrid charging, and two output modes are available, i.e. Inverter and Mains, to meet different application requirements. Advanced MPPT technology with an efficiency of 99.9%.
Designed with a LCD screen and 3 LED indicators for dynamic display of system data and operating status.
Power saving mode available to reduce no-load loss.
Intelligent variable speed fan to efficiently dissipate heat and extend system life.
ON/OFF rocker switch for AC output control.
Complete protections, including short circuit protection, over voltage and under voltage protection, overload protection, reverse protection, etc.

Solar charging
Max.PV open circuit voltage:500Vdc
PV operating voltage range:120-450Vdc
Max. PV Input Power: 6000W
Max.PV Input Current: 22A
Max. PV Charging Current :80A
PV Wring:10AWG
AC Input/Output Wiring:7AWG
Battery Wiring: 2 AWG
Hybrid Charger Max Current:80A (AC+PV charge)

Mppt Inverter Max Input Power: 5500W, Voltage range:120-500Vdc, Max input solar current: 22A and Max.Power output: 5000W, max charge current: 80A. AC input Voltage range: 90-140V, Output 100/105/110Vac ±5%.
48V Power Inverter Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave.Two output modes: mains bypass and inverter output; uninterrupted power supply.
The 110V Solar Inverter will have Four charging modes are optional, i.e. PV priority, Utility Priority, Hybrid Charging, and Only Solar Charging; and two output modes are available, i.e. Inverter and Mains, to meet different application requirements
LCD display designand 3 LED indicators for dynamic display of system data and operating status, Intelligent variable speed fan to efficiently dissipate heat and extend system life. Can be accessed to a variety of household and office loads, including refrigerators, lamps, televisions, fans, air conditioning and other AC loads
