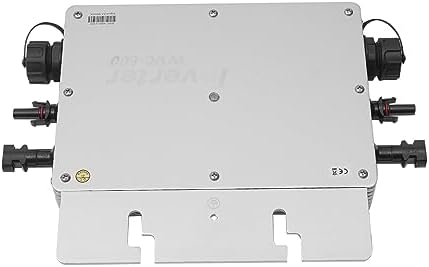

600W MPPT Solar Inverter, Waterproof Grid Tie Inverter DC to AC 36V Power Inverter Microinverter IP65 Aluminum Alloy for Roof Outdoor

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
Description:
By converting the direct current generated by the solar panels into alternating current for domestic appliances, the inverter provides an environmentally friendly and economical source of continuous energy. The high-quality aluminum housing provides a high level of protection, ensuring stable operation and long service life. Its powerful performance and high safety level make it the ideal choice for most homes.
Specifications：
Material: Aluminum Alloy
Color: Silver
Power Source: Solar Powered
Maximum Input Power: 600Watt
Recommend the Use of PV Modules: 2x300W & Vmp>30V & Voc<50V
Maximum Input DC Voltage: 54V
Peak Power Tracking Voltage: 22-45V
Operating Voltage Range: 17- 50V
Min/Max Starting Voltage: 22- 50V
Maximum DC Short-circuit: 40A
Maximum Input Operating Current: 27.2A
Peak Power Output: 600Watt
Rated Output Power: 550Watt
Rated Output Current: 4.58A
Rated Voltage Range: 80-160VAC
Rated Frequency Range: 57-62.5Hz
Power Factor: >99%
Max Unit Per Branch Circuit: 6pcs (Single-phase)
Output Efficiency: @120V
Static MPPT Efficiency: 99.5%
Maximum Output Efficiency: 91.2%
Night Time Power Consumption: <1W
THD: <5%
Ambient Temperature Range: -40°C to + 60°C
Waterproof Rating: IP65
Cooling: Self-cooling
Packing Size: 32*22*9.5cm/12.59*8.66*3.74in
Product Size: 21.3*5.8*25cm/8.39*2.28*9.84in
Gross Weight: 2.45kg/5.4lbs
Net Weight: 1.6kg/3.52lbs
Package Included：
1* Micro Inverter
1* AC Connection Cable
1* English User Notice Manual
1* Chinese English Integrated Instruction
Other Accessories for Installation

【High Performance】It has a powerful MPPT (Maximum Power Point Tracking) algorithm and APL function to optimize the power collection from the solar panels while making the output power more stable. It accurately captures and locks in the maximum output power point even under fluctuations in current intensity, resulting in a significant increase in power generation to greater than 25%.
【Multiple Protection Functions】It provides six protection functions, over temperature protection, under voltage alarm, under voltage protection, over voltage protection, short circuit protection and overload protection functions, so you can use it with confidence.
【Reliable Circuit System】The product has a constant current and output power, and features galvanic isolation technology to provide a fully isolated boost circuit, making the circuit safe and reliable. In addition, the output is automatically switched off when there is an obstruction in the main network.
【Direct Use】It uses solar power directly, so you can simply connect the solar panels directly to the grid-connected inverter to get AC power without having to connect the batteries, which is convenient and energy efficient.
