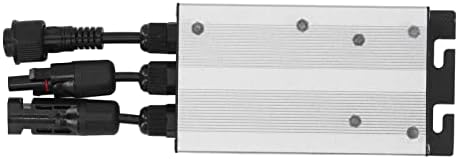

AC120V MPPT Solar Grid Tie Inverter Micro Pure Sine Waving Aluminium Alloy Solar Grid Tie Inverter Solar System Supplies (300W)

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
Specification:
Item Type: Solar Micro Inverter
Material: Aluminum alloy
Output Voltage Waveform: Sine waving
Photovoltaic Output (DC)
Number of Input Connectors: 1 set
AC Output(AC)
Single Phase Grid Type: 120V; Rated AC Voltage: 120V AC; Output Voltage Range: 120V AC, 80V-160V; Rated AC Frequency: 50 or 60Hz
Output Frequency Range: 50Hz 47.5-52.5Hz or 60Hz 57.5-62.5Hz
Output Power Factor: >0.99
Maximum Conversion Efficiency: 92.50%
CEC Weighted Efficiency: 120VAC,90.5%
MPPT Tracing Efficiency: 99.9%
Temperature Range: -40℃ to 65℃ (ambient), -40℃ to +85℃ (storage)
Waterproof Rating: IP55; Cooling Method: cooling
Installation
1 Connect the micro inverter to the rack. Marking the location of the micro inverter on the rack relative to the PV module junction box or any other obstacle.
2 Connect the micro inverter AC cable and connect it to the AC bus cable (L brown, N blue, G green and yellow) one to the other, do not exceed the maximum current of the AC bus cable.
3 Connect the micro inverter to the PV module.
4 Install the AC branch circuit junction box and connect the conductors of the AC bus cable. Connect the AC branch circuit junction box to the utility grid interconnection point.
5 Double check that all microinverters,Turn on the AC circuit breakers on each AC branch circuit of the microinverters.
6 Turn on the main AC circuit breaker for the utility grid. it will begin generating power after a 30 second delay.

Package List:
1 x Inverter
1 x AC Cable
1 x Instruction Manual

Note:
1. It cannot be used with batteries
2. it must be properly connected to the grid and the grid is working properly, when the grid stops working, it will also stop generating electricity.
3. The PV panel voltage should not exceed the maximum input voltage of the inverter.Do not exceed the maximum input power of the inverter for the PV panel
HIGH CONVERSION RATE: The micro inverter has high conversion efficiency, with the highest conversion efficiency up to 92.5%, improving the efficiency of use.The PE terminal in the AC cable is the grounding wire of the equipment, no other grounding port.
HIGH ACCURACY METER: This micro inverter has a built in high accuracy meter that allows you to see the working status of each component. Let your working experience be enhanced.
PROVIDE PROTECTION: Islanding protection, voltage protection, frequency protection, temperature protection, current protection, etc.
ALUMINUM ALLOY MATERIAL: The inverter needs to be connected to the grid to be used, small size, simple and convenient operation. The micro inverter is made of aluminum alloy, which is durable and can be used for a long time.
