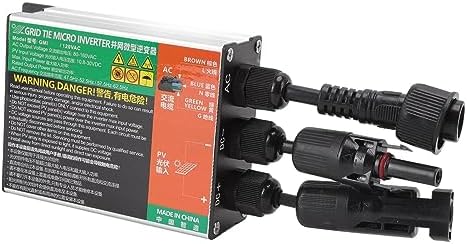

AYNEFY Solar Micro Inversor DC to AC Micro Inverter Grid,GMI Grid Tie Micro Inversor Solar PV Aluminum Alloy IP55 Multi Protection 20×7.7×3.6cm (GMI-120L-AC110V)

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
Specification:
Item Type: Grid Tie Micro Inverter
Material: Aluminum alloy
Weight: Approx. 427g/15.06oz
Size: 20×7.7×3.6cm/7.87×3.03×1.42in
Solar PV:
Number of Connectors at Input: 1 set (group)
Maximum Power Point Tracking Range: 12.5V-25V
Operating Voltage Range: 10.8V-30V
Maximum DC Input Voltage: 30V
Starting Voltage: 10.8V
Maximum DC Input Current: 7.5A, 9.37A, 11.25A
AC Output (AC):
Single Phase Grid Type: 120V 230V
Rated AC Voltage: 120VAC 230VAC
Output Voltage Range: 120VAC: 80V-160V at230VAC: 180V-280V
Rated AC Frequency: 50Hz 60Hz
Output Frequency Range: 50Hz: 47.5Hz-52.5Hz at60Hz: 57.5Hz-62.5Hz
Output Power Factor: >0.99
Efficiency:
Maximum Conversion Efficiency: 92.5%
CEC Weighted Efficiency: at120VAC: 90.5% at230VAC: 91.5%
Tracking Efficiency: 99.9%
Nighttime Loss: Mechanical Data:
Operating Ambient Temperature: -40℃ to +65℃
Protection Level: IP55
Cooling Method: cooling without fan
Other Features:
Isolation Characteristics: High frequency transformer isolation
Comprehensive Grounding: PE end in AC cable line is the grounding wire of the equipment, no other grounding port.
Protection Mode: Islanding protection, voltage protection, frequency protection, temperature protection, current protection, etc.

How to Use:
Before installing the microinverter, check that the grid voltage and the PV module voltage match the input and output voltage levels marked on the label attached to the microinverter housing. If they do not match, please stop the installation, otherwise the microinverter may be damaged.

Package List:
1 x Micro Inverter

1 x Manual
1 x AC Cable

Grid Tie: This device is a grid tie micro inverter. To make it work properly, it must be connected to the grid properly, and the grid works properly, and when the grid stops working, it will also stop generating electricity.
Safrty Use: The positive and negative poles of the solar panel cannot be reversed. If you extend the solar panel cable, you need to be careful about this problem.
Installation Notes: Install away from direct sunlight and direct rain exposure. Please keep it in a ventilated, dry and cool place. The voltage of the PV panel should not exceed the maximum input voltage of the solar grid tie inverter. (Voc<50V)
High Performance: Our solar inverter provides sustainable energy and brings excellent environmental efficiency. It offers you efficient power transmission rate.
