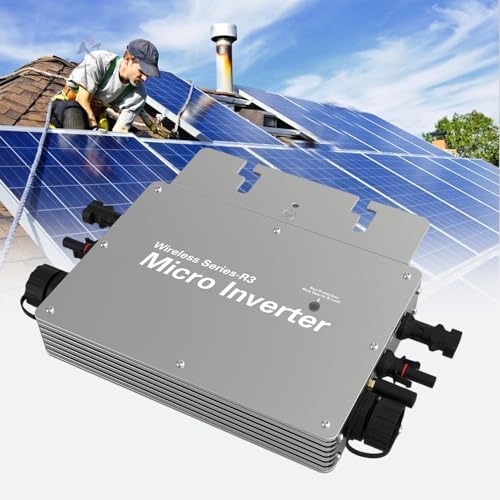

DAZULI Solar Micro Inverter, 120V 230V WiFi Solar Grid Tie Inverter Ip65 Waterproof, Mppt Pure Sine Waving Inverter Input 22V-60V Output 85V-265V Automatic Recognition,700W

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
1. IP65 waterproof exterior (mounted on the bottom of the solar panel).
2. AC data monitoring screen.
3. Built-in powerful Maximum Power Point Tracking (MPPT).
4. Made of aluminum alloy for better heat dissipation
5. Support single phase or three phase connection.
6. simple wiring.
7. high-precision phase detection; over and under voltage protection; over and under frequency protection; islanding protection. Parameter.

SPECIFICATION:
Input parameters: WVC-600W/WVC-700W/WVC-800W
Solar panel open circuit voltage range: 30-54 VOC/ 30-60 VOC
Peak power tracking voltage: 22-60V
Minimum/maximum starting voltage: 22-60V
Maximum DC short circuit current: 2*15A/2*16A/2*18A
Maximum input operating current: 2*12A/2*14A/2*16A

Output parameters: @120VAC/@230VAC
Output peak power: 600 w/700 w/800 w
Rated output power: 580 w/680 w/780 w
Rated output current: 5A/2.6A /5.9A/3.05A/ 6.7A/3.5A
Rated voltage range: 80-160VAC/185-265VAC
Rated Frequency Range: 47-52Hz/57-62Hz
Power Factor: >95%
Number of connected units per string: 6 units (single phase)/6 units
Output Efficiency: @120VAC/@230VAC
MPPT static efficiency: 99.50%

Note:Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

PACKING LIST:
1 x Micro Inverter
1 xAC cable
1 x English manual
1 sets fixing screw

Service: If you have any questions after receiving the package, please contact us as soon as possible, we will give you a satisfactory answer at any time.
✔【PURE POSITIVE SINE WAVE】 The inverter adopts intelligent soft switching technology, high-frequency switching power supply technology, and 32-bit DSP full digital SPWM control technology, making the solar grid tie micro inverter strong anti-interference ability, fast operation speed, high intelligence, and a powerful functional system, which can meet the needs of users.
✔【WIDE VOLTAGE INPUT】 The input voltage range of the inverter is 22-60V DC, which can support solar panels with larger voltage. With larger voltages of PV modules, a parallel connection can also be realised, so that multiple inverters can be stacked as desired form a single-phase parallel stacking system.
✔【SAFE TO USE】 The micro inverter can independently control each component in parallel, minimizing potential safety hazards. AC Output Voltage: 120V-230V (automatic identification).Rated Output Power: 600W 700W 800W.Operating Temperature Range:-40℃~60℃/-40℉~140℉.Waterproof Rating: IP65.Cooling Method: Self-cooling.Rated Frequency Range: 57-62Hz.
✔【FLEXIBLE INSTALLATION】 This inverter can be stacked in any number of units, forming a single-phase parallel stacking system or easily forming a three-phase system to provide three-phase AC power, which you can install according to your specific needs.
