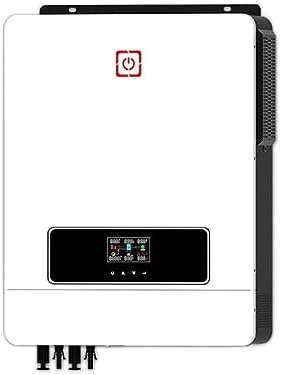

DEBLAN 8.2KW Hybrid Solar Inverter Built MPPT 160A Solar Controller Off-Grid On-Grid 48V 230VAC Max PV 500VDC Support W-I-F-I (Color : SML-V-8.2KW-WiFi)

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
Features:
1)sine wave inverter
2)Configurable input voltage range for home appliances and personal computers via LCD setting
3)Configurable battery charging current based on applications via LCD setting
4)Configurable AC/Solar Charger priority via LCD setting
5)Compatible to mains voltage or generator power
6)Auto restart while AC is recovering
7)Overload/ Over temperature/ short circuit protection
8)Smart battery charger design for optimized battery performance
9)Cold start function
10)W-I-F-I/GPR
MODEL
IsolarSMLV8.2KW
IsolarSMLV10.2KW
Phase
1-phase
Maximum PV Input Power
8200W
10200W
Rated Output Power
8200W/8200VA
10200W/10200VA
Maximum Solar Charging Current
160A
180A
PV Input(DC)
Nominal DC Voltage/Maximum DC Voltage
360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage
90VDC/120VDC
MPPT Voltage Range
90VDC~450VDC
Number Of MPPT Trachers/Maximum Input Current
1/27A
GRID OUTPUT(AC)
Nominal Output Voltage
220/230/240VAC
Output Voltage Range
195.5~253VAC
Nominal Output Current
35.6A
44.3A
Power Factor
>0.99
Feed-in Grid Frequency Range
49~51±1Hz
EFFICIENCY
Maximum Conversion Efficiency(DC/AC)
98%
TWO LOAD OUTPUT POWER(V2.0)
Full Load
8200W
10200W
Maximum Main Load
8200W
10200W
Maximum Second Load(Battery mode)
2733W
3400W
Main Load Cut Off Voltage
44VDC
44VDC
Main Load Return Voltage
48VDC
48VDC
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage
120-140VAC/180VAC
Acceptable Input Voltage Range
90-280VACor170-280VAC
Maximum AC Input Current
40A
50A
Nominal Operating Frequency
50/60Hz
Surge Power
16400W
20400W
PV INPUT(DC)
Maximum DC Voltage
500VDC
MPPT Voltage Range
90VDC-450VDC
Number of MPPT Trackers/Maximum In
【Uninterruptible Power Supply】If main/generator disconnected or the solar charging insufficient, the Inverter Charger takes over the battery supply to the alternative option which will not let your electronics shut down.
【Segmented Charing/Discharging】modes: mains priority battery priority PV priority; uninterrupted power supply.charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging. Set a flexible time period for mains charging/discharging according to the local mains condition, and help you save the mains.
【Easy&Safe Use】LCD display to monitor all data anytime. Multiple intelligent protections, such as PV input current/power limiting protection, PV input over-voltage, PV night reverse current protection, multiple cooling fans to prevent over-heat issue, etc.
【Safe and Realiable】The power inverter has protection with a number of protection functions, including short circuit protection, over voltage and under voltage protection, overload protection, reverse protection, etc. Ideal for AC loads such as household appliances, power tools, industrial equipment, and electronic audio and video equipment.
