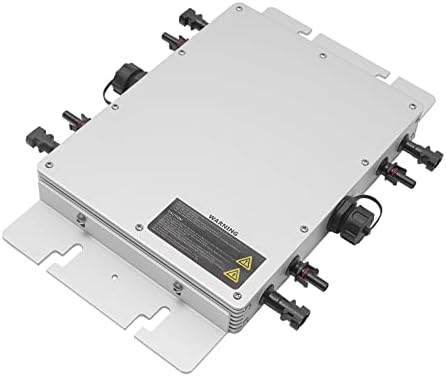

Futchoy 1400W Solar Grid Tie Inverter Microinverter Waterproof Self Cooling 110V/80-160VAC Output Mirco Inverter Automatic Identification Power Inverters

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
Details
Gasket: The inverter is equipped with two gaskets to help you install the photovoltaic support, making the inverter more stable.

Round Corners: The corners of this product are very round, which can effectively reduce your skin scratches during installation or movement.

LED Indicator: The product uses an LED indicator, which mainly has two colors: red light and green light. You can master the product situation in time according to the color and flicker of the light, which is very convenient.

Specification
Model: WVC-1400W
Color: Silver
Material: Aluminium Alloy
Power: 1400W
Voltage: 110V
Plug Type: US Standard
Maximum Input DC Voltage: 54V
Peak Power Tracking Voltage: 22-45V
Operating Voltage Range: 17-50V
Min/Max Start-up Voltage: 22-50V
Maximum DC Short Circuit Current: 80A
Maximum Input Operating Current: 58A
Output Peak Power: 1400watt
Rated Output Power: 1350watt
Rated Output Current: 12.8A
Rated Voltage Range: 80-160VAC
Rated Frequency Range: 57-62.5Hz
Power Factor: ＞99％
Number of Circuit Connections Per String: 3
Static MPPT Efficiency: 99.5%
Maximum Output Efficiency: 91.2%
Night Time Power Loss: <1W
Total Flow Distortion: <5%
Operating Temperature Range: ﹣40℃~60℃/﹣40℉~140℉
Waterproof Rating: IP65
Cooling Method: Self-cooling
Communication Mode: Power Line Carrier
Power Transmission Mode: Reverse Transmission, Load Priority
Gross Weight: 4.2kg/9.26lbs
Net Weight: 3kg/6.61lbs
Product Size: 21*37.4*4cm/8.27*14.72*1.57inch
Package Size: 48*35*12cm/18.9*13.78*4.72inch

Package Included
1* Solar Grid Tie Micro Inverter
1* Power Cord
2* Manuals(English+Chinese)
1* Warranty Card
Digital Control: The inverter adopts intelligent soft switching technology, high-frequency switching power supply technology, and 32-bit DSP full digital SPWM control technology, making the product strong anti-interference ability, fast operation speed, high intelligence, and a powerful functional system, which can meet the needs of users.
Electrical Isolation: The output and input of the system are completely electrically isolated, the insulation performance of the entire power distribution system is good, and the fully isolated booster circuit is safer and more reliable.
Good Heat Dissipation Effect: The product adopts a self-cooling system and is designed with heat dissipation holes, which can timely reduce the temperature during operation, reduce potential safety hazards and extend the applicable life of the product.
Safety Guard: The inverter has six protection functions: over-temperature protection, under-voltage alarm, under-voltage protection, over-voltage protection, short circuit protection, overload protection, etc. Besides, the IP65 waterproof design can prevent rain from eroding its surface, so you can use it with confidence.
