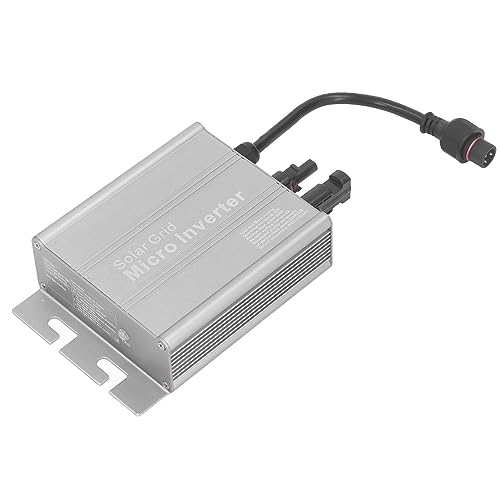

Grid Tie Micro Inverter, Aluminum Alloy 120V 230VAC Solar Micro Inverter for Street Lighting (260W)

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
1. [Working Principle] This solar grid tie micro inverter converts the DC power generated by solar panel into AC power. Small in size, ideal for small solar systems.
2. [High Efficiency] The micro inverter enables maximum power point tracking, optimizing power output, the conversion efficiency is up to 93%, ensuring efficient energy utilization.
3. [Precise Meter] Built in high precise meter, this grid connected inverter allows users to monitor the working status of each component.
4. [User friendly] The grid tie micro inverter can be connected to the grid for immediate use, making it easy and convenient for users to operate.
5. [Aluminum Alloy Material] Made from aluminum alloy material, this solar inverter is sturdy and long lasting, capable of enduring extended usage.

Spec:
Item Type: Solar Grid Tie Micro Inverter
Material: Aluminum Alloy
Working Voltage Range: 18-50V
MPPT Working Voltage Range: 20-50V
Starting Voltage: 18V
Output Parameter: 120V 230VAC self adaptive
Output Voltage Range: 80-160VAC 180-280VAC
Output Frequency Range: At 50Hz: 47-53Hz, at 60Hz: 57-63Hz
Output Power Factor: >95%
Number of Connection Per Circuit String: 6 units (single phase at 120VAC), 12 units (single phase at 230VAC)
Output Efficiency:
MPPT Tracking Power: 0.99
Maximum Output Efficiency: 93%
Total Harmonic Distortion Rate: THDNight Loss: Appearance and Technical Features:
Working Temperature Range: -20℃ to 65℃
Storage Temperature Range: -40 ℃ to 75℃
Waterproof Grade: IP65
Heat Dissipation Method: Self cooling
Power Transmission Mode: Reverse transmission, load priority use
Electromagnetic Compatibility: EN50081.part1 EN50082.Part1.CSA STD.C22.2 No.107.1
Power Grid Disturbance: EN61000-3-2 safety regulations EN62109.ULSTD.1741
Power Grid Inspection: DIN VDE 0126IEEE STD.1547.1547.1 and 1547.A

How to Use:
Step 1: Connect the micro inverter to the rack. the position of the micro
Package Dimensions ‏ : ‎ 10.63 x 5.51 x 2.76 inches
Item model number ‏ : ‎ Qinlorgonqbdkrch7z-11
Date First Available ‏ : ‎ August 31, 2023
Manufacturer ‏ : ‎ Qinlorgo
ASIN ‏ : ‎ B0CGZ4SPYT

[Aluminum Alloy Material] Made from aluminum alloy material, this solar inverter is sturdy and long lasting, capable of enduring extended usage.
[Working Principle] This solar grid tie micro inverter converts the DC power generated by solar panel into AC power. Small in size, ideal for small solar systems.
[High Efficiency] The micro inverter enables maximum power point tracking, optimizing power output, the conversion efficiency is up to 93%, ensuring efficient energy utilization.
[User friendly] The grid tie micro inverter can be connected to the grid for immediate use, making it easy and convenient for users to operate.
