HangTon WS16 7 Pin 5A Power Connector Heavy Duty Industrial Aviation Circular Metal Solar Automotive Outdoor Application

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
Specifications:
WS16:
Panel Hole Cutout Diameter: 16mm

Cable Outer Diameter: 6mm max
Coupling Type: Threaded, secure and quick connection
Shell Material: Zinc alloy with chrome plating. Corrosion resistance, oxidation resistance, long service life
Insert Material: Thermoplastic PPS max temperature 260℃
Contact Material: Brass with gold plating
Termination: Solder
Mating Cycle: >500 times
Temperature Range: -40~+85℃

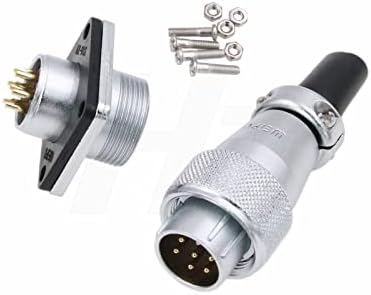

Package Includes:
1 x TQ Male plug with PVC sleeve
1 x Female socket square flange mount
4x screws

Features:
In the harsh environment the connector can provide safe and reliable connection.
WS16 metal aviation connector is ideal for data and power distribution in area of dust-proof, indoor / outdoor applications, such as outdoor electrical tools, industrial power supply, automotive portable power, medical device, communications,automatic equipment, led lighting, LED panels, solar power station, outdoor security cameras, transformer, control box, machines equipment, packing machines and more.

[Contact Spec] Rated Voltage / Current AC 400V / 5A. Contact Diameter Φ1mm. Resistance 5mΩ. Wire Size 18AWG or smaller than 0.75mm². Cable Outer Diameter Range 6mm max
Power connector for portable power station, industrial machines, solar generator / panel, camper van, automotive, LED, marine, lighting system, indoor outdoor electrical equipment
Threaded coupling, solder termination type, Zinc alloy with chrome plating shell, gold-plated brass contact. Well made and good quality connector. Connector set includes plug with PVC sleeve, socket and mounting screws(without plastic cap)
Reliable solid secure and quick connection. Easy cable assembly. Corrosion resistance, oxidation resistance, dust-proof, explosion-proof, deformation-proof, long service life. Heavy-duty connector for harsh industrial indoor outdoor environment
