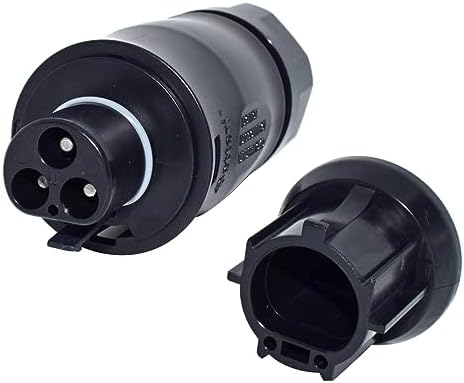

JINKAIMING Betteri BC01 Male with End Cap Solar Power AC Connector IP68 Waterproof for PV System 1-Phase Grid Tie Micro Inverters Hoymiles Deye Envertech TSUN NEP

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
【Betteri BC01 Male】Rated current: 25A (when using 4mm² or 12AWG wire); Rated voltage: TUV: 250V AC CSA: 250/350V AC; Contact resistance: ≤1 mΩ; Rated pulse withstand voltage: 4000V AC; Waterproof rating: IP68(1m, 1h); Applicable wire gauge: 2.5/4.0mm² or 14/12AWG; Applicable wire OD: 10-13mm; Connection style: Screw crimping
【High-Quality Materials】The shell is made of PPO, with outstanding electrical insulation, good dimensional stability and high temperature resistant, Fire rating UL94-V0. The terminal material is copper zinc alloy, with a surface tin plating treatment, exhibits excellent corrosion resistance and conductivity.
【Application】Suitable for single-phase micro inverters, such as APsystems, Hoymiles HM 300 / 350 / 400 / 600 / 700 / 1500 / 1800 / 1200 / HMT-2250-6T / HMT-1800 0-600 0-600 T / Deye SUN600G3-EU-230 / SUN800G3-EU-230 / 1000G3 / TSUN M800(DE) / M800 / Tsol / Huayu, Envertech, Forestry or TSUN-TSOL.
【Certification】CSA and TÜV certified. CE, IEC and VDE – safety requirements and testing methods. UL6703AUSA and Canada – safety requirements and testing methods
【Package Including】1x Betteri BC01 Male Connector, 1x End Weatherproof Cap. Any questions, please feel free to contact us and we will be always there for you.
