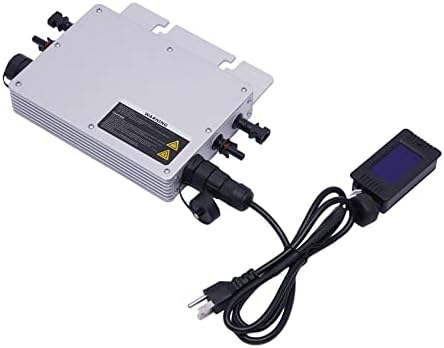

LIYUANJUN 600W Micro Inverter, 110V Solar Grid Tie Microinverter IP65-Waterproof Energy Inverter LCD Display AC Connection Cable Aluminium Alloy Material for 36V/30VSolar Panel

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
Specification
Material: Aluminium Alloy
Power: 600W
Voltage: 110V
Plug: US Standard
Operating Temperature Range: -40℉~140℉
Cooling Method: Self-cooling
VOC Voltage Range: 36-48V
Maximum Output DC Voltage: 54V
Peak Power Tracking Voltage: 22-45V
Operating Voltage Range: 17-50V
Min/Max Startup Voltage: 22-50V
Maximum DC Short Circuit Current: 40A
Maximum Input Operating Current: 27.2A
Rated Output Current: 4.58A
Rated Voltage Range: 80-160VAC
Rated Frequency Range: 57-62.5Hz
Static MPPT Efficiency: 99.5%
Max. Output Efficiency: 91.2%
Nighttime Power Loss: <1W
Total Flow Distortion: <5%
Recommended Battery Parameters: 36V/20mah
Product Size: 8.39*2.28*9.84inch

Package Included
1* Micro Inverter
1* LCD Display
1* AC Connection Cable
1* English Manual
Other Accessories for Installation

Notes
1.Please note that our products are grid-connected, the AC output port has to be connected to the home grid in order to achieve grid-connected power generation.
2.We recommend that the solar panel is configured for 20% more power than the power of the product. For example, if the product is 600W, the total power of the solar panels should be between 700-750W.
3.Only qualified service personnel should repair it.
4.Please install it in a place with good ventilation and remove not safe items from the surrounding area.
5.When using this product, avoid children touching.
6.When the input load is a battery, we recommend a battery voltage of 36V, which can be connected in series with 3 12V batteries. Please note that the positive and negative polarity should not be reversed when connecting it. The recommended battery current is 36V/20mah for 600W.
【High Efficiency】Solar grid tie inverter powerful maximum power point tracking algorithm to optimize power harvesting from solar panels that precisely captures and targets the maximum output power point, resulting in a significant increase in power generation. The complete electrical isolation of the machine’s output and input makes the entire power distribution system well insulated and the use of fully isolated boost circuits makes it safer.
【HD Display】This microinverter is equipped with an LCD display screen to monitor voltage, power, frequency, current, etc. so you can see the machine clearly in operation. IP65 waterproof design and aluminum alloy material can effectively prevent rain, you can use it with confidence. This micro-inverter converts the direct current generated by the solar panels into alternating current and provides a continuous source of energy.
【Flexible Installation】This inverter can be stacked in any number of units, forming a single-phase parallel stacking system or easily forming a three-phase system to provide three-phase AC power, which you can install according to your specific needs. Once installed, this machine requires little maintenance and only needs to be cleaned of dust from the PV panels. With 8.39*2.28*9.84inch, this micro-inverter can be installed in even small shops.
【Wide Application】This micro inverter fits for 30V or 36V solar panels, 36V batteries. It can be used in residential and small commercial environments. It is suitable for various household appliances. It can convert the DC power generated by solar panels into AC power available for household appliances. It comes with over-temperature protection, under-voltage alarm, over-voltage protection, short-circuit protection, and overload protection.
