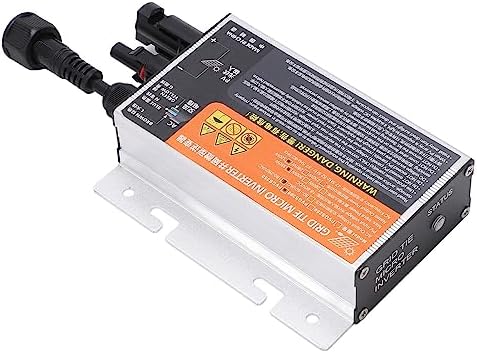

Micro Grid Tie Inverter, Current Conversion Device 18‑60V Solar PV Grid Tie Micro Inverter High Conversion Efficiency for Photovoltaic Power Station (PVGS-350W(18-60V) 110V)

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
1. Current Conversion Device: The solar micro inverter is a device that converts the direct current of the solar panel into alternating current, it is small in size and capacity, and is often used in small solar energy systems.
2. Power Grid Connected: This device is a grid connected micro inverter, to make it work normally, it must be connected to the power grid normally, the power grid works normally, when the power grid stops working, it will also stop generating electricity.
3. Protection Functions: Islanding protection, voltage protection, frequency protection, temperature protection, current protection, etc.
4. Input Voltage: The voltage of the photovoltaic panel should not exceed the maximum input voltage of the solar grid connected inverter, and the maximum DC input voltage is 60V.
5. Installation Note: The positive and negative poles of the solar panel cannot be reversed, if you extend the solar panel cable, you should be careful about this problem, and avoid direct sunlight and rain during installation(ventilated, dry, cool).

Specification:
Item Type: Solar PV Micro Grid Tie Inverter
Material: Aluminum Alloy
Gross Weight: 556g / 19.6oz
Series: PVGS260-350 Series
Product Size: Approx.21.2 x 9.5 x 3.5cm / 8.3 x 3.7 x 1.4in
PV Output:
Input Connectors Number: 1 set
Maximum Power Point Tracking Range: 28V-55V
Operating Voltage Range: 18V-60V
Maximum DC Input Voltage: 60V
Starting Voltage: 18V
Maximum DC Input Current: 8.7A, 10A, 11.7A
AC Output (AC):
Single Phase Power Grid Type: 120V 230V
Rated AC Voltage: 120V AC, 230V AC
Output Voltage Range: 120V AC: 80V-160V, 230V AC: 180V-280V
Rated AC Frequency: 50Hz, 60Hz
Output Frequency Range: 50Hz: 47.5Hz-52.5Hz, at 60Hz: 57.5Hz-62.5Hz
Output Power Factor: >0.99
Efficiency:
Maximum Conversion Efficiency: 92.5%
CEC Weighted Efficiency: at 120V AC: 90.5%, at 230V AC: 91.5%
Tracking Efficiency: 99.9%
Night Loss: Mechanical
Power Grid Connected: This device is a grid connected micro inverter, to make it work normally, it must be connected to the power grid normally, the power grid works normally, when the power grid stops working, it will also stop generating electricity.
Current Conversion Device: The solar micro inverter is a device that converts the direct current of the solar panel into alternating current, it is small in size and capacity, and is often used in small solar energy systems.
Installation Note: The positive and negative poles of the solar panel cannot be reversed, if you extend the solar panel cable, you should be careful about this problem, and avoid direct sunlight and rain during installation(ventilated, dry, cool).
Input Voltage: The voltage of the photovoltaic panel should not exceed the maximum input voltage of the solar grid connected inverter, and the maximum DC input voltage is 60V.
