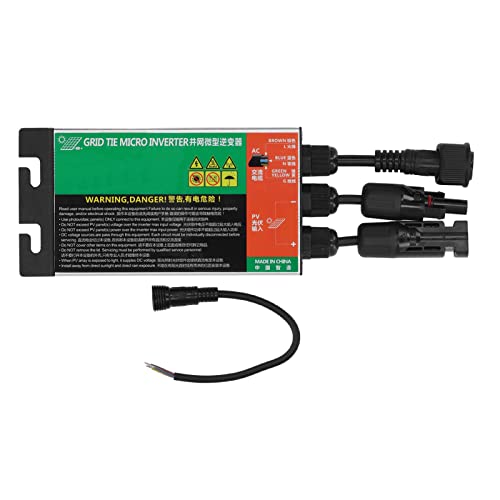

Micro Solar Grid Tie Inverter MPPT Solar Grid Tie Inverter Pure Sine Waving Aluminium Alloy Micro Solar Grid Tie Inverter AC120V Power Transformers (150W)

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
Specification:
Item Type: Solar Micro Inverter
Material: Aluminum alloy
Output Voltage Waveform: Sine waving
Photovoltaic Output (DC)
Number of Input Connectors: 1 set
AC Output(AC)
Single Phase Grid Type: 120V
Rated AC Voltage: 120V AC
Output Voltage Range: 120V AC, 80V-160V
Rated AC Frequency: 50 or 60Hz
Output Frequency Range: 50Hz 47.5-52.5Hz or 60Hz 57.5-62.5Hz
Output Power Factor: >0.99
Efficiency
Maximum Conversion Efficiency: 92.50%
CEC Weighted Efficiency: 120VAC,90.5%
MPPT Tracing Efficiency: 99.9%
Night Time Loss: Temperature Range: -40℃ to 65℃ (ambient), -40℃ to +85℃ (storage)
Waterproof Rating: IP55
Cooling Method: cooling, no fan
Protection: Islanding protection, voltage protection, frequency protection, temperature protection, current protection, etc.
Comprehensive grounding: The PE terminal in the AC cable is the grounding wire of the equipment, no other grounding port.

packing list:
1 x Inverter
1 x AC Cable
1 x Instruction Manual

Notice:
1. Use only the solar panel to connect to this device. It cannot be used with batteries, so please use it with caution.
2. This device is a micro inverter, for it to work properly, it must be properly connected to the grid and the grid is working properly, when the grid stops working, it will also stop generating electricity.

Package Dimensions ‏ : ‎ 9.06 x 3.94 x 1.97 inches
Item model number ‏ : ‎ Hyuduosqa6vkt5xr-12
Date First Available ‏ : ‎ August 26, 2023
Manufacturer ‏ : ‎ Hyuduo
ASIN ‏ : ‎ B0CGP6J5M5

High Conversion Rate: The micro inverter has high conversion efficiency, with the highest conversion efficiency up to 92.5%, improving the efficiency of use.
PROVIDE PROTECTION: Islanding protection, voltage protection, frequency protection, temperature protection, current protection, etc.
for Small Solar Systems: Commonly used in small solar systems. Micro inverter can achieve maximum power point tracking to maximize the overall output power.
Aluminum Alloy Material: The inverter needs to be connected to the grid to be used, small size, simple and convenient operation. The micro inverter is made of aluminum alloy, which is durable and can be used for a time.
