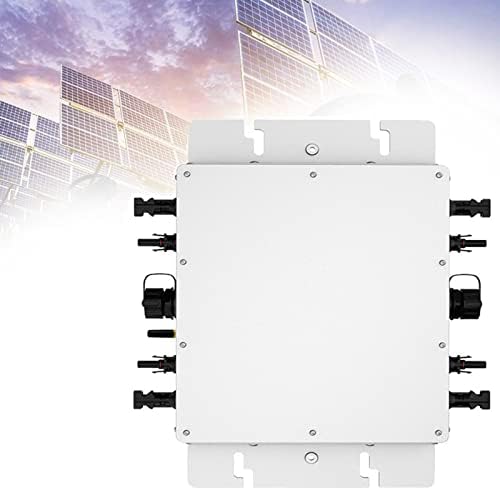

RsFiL Pure Sine Wave Microinverter 1200w1400w1600w Solar Grid Connected Micro Inverter WiFi Control Automatic Identification Inverters Aluminum Alloy 1200W (1400w)

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
Specification:/>Model: WVC-1200 1400 1600/>Maximum input power: 1200W 1400W 1600W/>Product use: solar power generation system/> Applicable scene: solar power generation system (roof outdoor) Weight: 3.77 kg Product size: about 370 x 300 x 41.6 mm Range: Voltage mode output: 120/230V automatic identification/>Solar panel open circuit voltage range: 30-60Voc/>Peak power tracking voltage: 22-60V/>Min/Max starting voltage: 22-60V />Maximum DC short circuit current: 4*16A 4*16A 4*18A/>Maximum input working current: 4*14A 4*14A 4*16A/> />Output parameters: 120V/>Maximum output power: 1400W 1400W 1600W/>Rated output power: 1350W 13500W 1550W/>Rated output current: 11.6A 11.6A 13 .3 A/>Rated voltage range: 80-160 VAC/>Rated frequency range: 48-51 Hz/58-61 Hz/>Power factor: > 95%/>Number of units connected per group: 3 units (single phase) 3 units (single phase) 3 units (single phase)/>/>Output parameters: 230 V/>Maximum output power: 1400W 1400W 1600W/>Rated output power: 1350W 13500W 1550W />Rated output current: 6A 6A 6.95A/>Rated voltage range: 180-280 VAC/>Rated frequency range: 48-51 Hz/58-61 Hz/>Power factor: > 95%/>Number of connections per string: 6 units (single phase) 6 units (single phase) 6 units (single phase)/>/>/>Technical characteristics of the appearance/>Operating temperature range: -40 °C – +65°C/>Waterproof level: IP65 NEMA3R/>Cooling method: self-cooling/>Communication method: 433 MHz/WiFi/>/>Packing list:/>1 microinverter/ >1 cable/>1 x English manual/>2 accessory packs.
Built-in high-precision meter：The inverter has built-in high-precision meters which are clear and easy to read and you can see the working status of each component giving you a satisfying experience
Maximum power point tracking：Solar inverters can achieve maximum power point tracking with excellent results maximizing the total output power and improving efficiency
Convenient：The inverter can be installed directly behind the module or on the bracket which is convenient for your work and very easy to maintain
Advantages：The microinverter can independently control the parallel connection of each component improve the safety factor minimize the safety risk and operate stably
