Solar Grid Tie Inverter, Grid Tie Micro Inverter, Pure Sine Waving Solar Microinverter WVC2400 Aluminum Alloy for Power, Power

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
Specification:
Item Type: Grid Tie Micro Inverter
Material: Aluminum alloy
Model: WVC-2400
Recommend Use Component: 4 x 750W
Output Voltage Mode: 120V or 230V automatic adaptation
Solar Panel Open Circuit Voltage: 30-54V
Power Tracking Voltage: 22-60V
Minimum and Maximum Start Voltage: 22-60V
Maximum DC Short Circuit Current: 4 x 28A
Maximum Input Working Current: 4 x 23A
Operating Temperature Range: -40℃-+65℃
Waterproof Rating: IP65
Cooling Method: Self cooling
Power Transmission Mode: Reverse transmission, load priority use
Communication Mode: WiFi
Monitoring System: Mobile APP
Product Size: Approx. 370 x 300 x 41.6mm / 14.6 x 11.8 x 1.6in
Output Parameter 120V 230V
Output Power 2600Watt 2600Watt
Rated Output Power 2400Watt 2400Watt
Rated Output Current 20A 10.5A
Rated Voltage Range 80-160VAC 180-280VAC
Rated Frequency Range 48-51Hz 58-61Hz 48-51Hz 58-61Hz
Power Factor >95% >95%
Number of Connect Units Per String 2Pcs(Single Phase) 4Pcs(Single Phase)
Static MPPT Efficiency 99.50% 99.50%
Maximum Output Efficiency 95% 95%
Night Power Loss
Total Harmonic Distortion

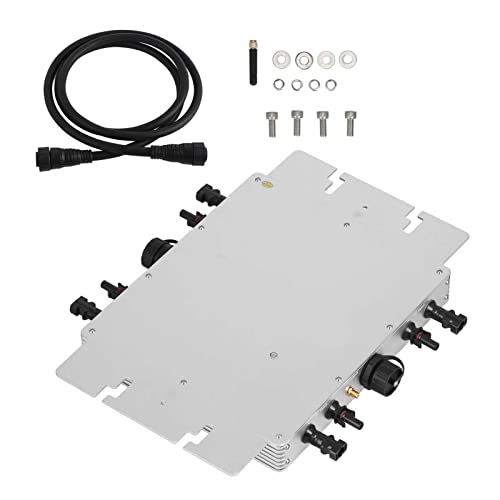

Package List:
1 x Inverter
1 x User Manual
1 x AC Connection Cable
4 x Fixing Screws
4 x Fixing Nuts
4 x Fixing Gaskets
4 x Fixing Washers
1 x Communication Antenna

Package Dimensions ‏ : ‎ 16.93 x 14.57 x 5.12 inches
Item model number ‏ : ‎ Marhynchusdpa8gqhumz
Date First Available ‏ : ‎ September 6, 2023
Manufacturer ‏ : ‎ Marhynchus
ASIN ‏ : ‎ B0CHGXQNFT

The solar inverter body is made of aluminum alloy, which has good heat dissipation performance and is easy to install and maintain.
With high speed maximum power point tracking, support multiple parallel stacking, static MPPT efficiency up to 99.5%.
The output voltage mode 120V and 230V automatically adapt, the maximum output efficiency is 95%.
The solar inverter body is made of aluminum alloy, which has good heat dissipation performance and is easy to install and maintain.
