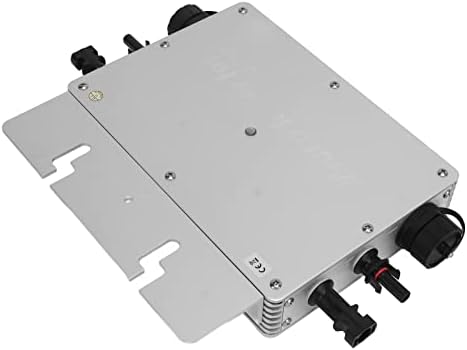

Solar Grid Tie Micro Inverter, Large Capacity Solar Inverter Safe to Use Easy to Install High Efficiency 700W for Industry

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
Feature:
1. OPTIMIZE OUTPUT POWER: We optimize the output power of each solar panel, so that the solar panel obtains the highest power point tracking MPPT, and reduces the occlusion caused by obstacles such as shadows.
2. HIGH : Compared with the ultra high voltage voltage caused by the series connection of traditional inverters, the factor of micro inverters is very high, which ensures the of the circuit.
3. ENLARGE CAPACITY: The use of micro inverters can expand the installed capacity of the system on the basis of the original solar system without replacing the inverter.
4. COMPLETE ACCESSORIES: Parts required for installation, such as screws, washers, washers, etc., are also delivered with the inverter.
5. EASY INSTALLATION: The micro inverter can be installed directly behind the module or on a bracket for easy maintenance.

How to Use:
Direct installation and use

Specification:

Item Type: Solar Grid Tie Micro Inverter
Material: Aluminum
Item Model Number: WVC700
Input Parameters:
Maximum Input Power: 2 x 350Watt
Recommended PV Panel Modules: 2 x 350W and Vmp>30V and Voc<50V
Maximum Input DC Voltage: 54V
Peak Power Tracking Voltage: 22-45V
Operating Voltage Range: 17-50V
Minimum to Maximum Startup Voltage: 22-50V
Maximum DC Short Circuit Current: 40A
Maximum Input Working Current: 30A
Output Peak Power: 700Watt
Rated Output Power: 650Watt
Power Factor: >99%
Static MPPT Efficiency: 99.5%
Power Loss at Night: <1W
Total Harmonic Distortion: <5%
Ambient Temperature Range: -40℃ – 60℃
Waterproof Grade: IP65
Cooling Method: Self cooling
Communication Mode: Power Line Carrier
Power Transmission Mode: Reverse transmission, load priority use
Electroma

HIGH : Compared with the ultra high voltage voltage caused by the series connection of traditional inverters, the factor of micro inverters is very high, which ensures the of the circuit.
ENLARGE CAPACITY: The use of micro inverters can expand the installed capacity of the system on the basis of the original solar system without replacing the inverter.
COMPLETE ACCESSORIES: Parts required for installation, such as screws, washers, washers, etc., are also delivered with the inverter.
EASY INSTALLATION: The micro inverter can be installed directly behind the module or on a bracket for easy maintenance.
