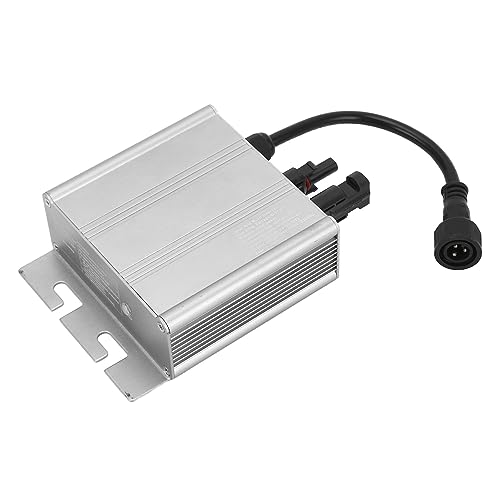

Solar Micro Inverter Grid Tie MPPT Pure Sine Wave Waterproof PV Charging Controller 120V AC230V Automatic Identification (180W)

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]

Specification:
Item Type: Solar Micro Inverter
Model T-120 T-150 T-180
Operating voltage range 10.8-30V
MPPT Operating voltage range 12-30V
Starting voltage 10.8V
Maximum input power 120W 150W 180W
Maximum input current 7.5A 9.3A 11A
Maximum allowed photovoltaic panel power 120W 150W 180W
Recommended add PV panel parameters 18V at 120W 18V at 150W 18V at 180W
Output parameter 120V/230VAC self adaptation
Output peak power 120W 150W 180W
Rated output power 110W 140W 170W
Output voltage range 80-160VAC/180-280VAC
Output current range 0.8A/0.4A 1.08A/0.56A 1.25A/0.65A
Output frequency range at 50Hz:47-53Hz;at 60Hz:57-63Hz
Connected circuits per string number 6 units(single at 120VAC); 12 units(single phase at 230VAC)
Output efficiency
MPPT tracking efficiency 0.99
Maximum output efficiency 93%
Total harmonic distortion rate ＜5%
Night loss ＜0.5W
Appearance and technical characteristics
Operating temperature range -20℃-65℃
Storage temperature range -40℃-75℃
Waterproof class IP65
Heat dissipation mode Self cooling
Power transmission mode Reverse transmission, load takes precedence
Electromagnetic compatibility EN50081.part1 EN50082.Part1.CSA STD.C22.2 No.107.1
Grid disturbance EN61000-3-2 safety standard EN62109.ULSTD.1741
Power grid detection DIN VDE 0126IEEE STD.1547.1547.1 and 1547.A

PackageList:
1 x Inverter
1 x AC Power Cable
1 x User Manual
2 x Mounting Screw
6 x Gasket
2 x Nut

Package Dimensions ‏ : ‎ 9.84 x 5.51 x 2.76 inches
Item model number ‏ : ‎ Kadimendium9bupxfm4ei-13
Date First Available ‏ : ‎ September 3, 2023
Manufacturer ‏ : ‎ Kadimendium
ASIN ‏ : ‎ B0CH77R5QV

HIGH EFFICIENCY CONVERSION: Experience outstanding energy conversion with this grid connected inverter, boasting a high conversion rate of up to 93%. This ensures improved efficiency and utilization of solar power
SUPERIOR PERFORMANCE: Designed to convert solar panel direct current to alternating current, this solar micro inverter is perfect for small solar systems. With maximum power point tracking (MPPT) technology, it maximizes overall power output and includes a high accuracy instrument to monitor individual component status
USER FRIENDLY OPERATION: This grid connected inverter features simple installation and connection to the power grid, making it incredibly convenient to use. Harness the power of solar energy with ease using this reliable and efficient solar micro inverter.
VERSATILE FUNCTIONALITY: This compact grid-connected inverter efficiently converts direct current to alternating current, providing power to appliances and office equipment while seamlessly connecting to the utility grid. The micro inverter’s AC output is synchronized and in phase with the utility grid for optimal performance
