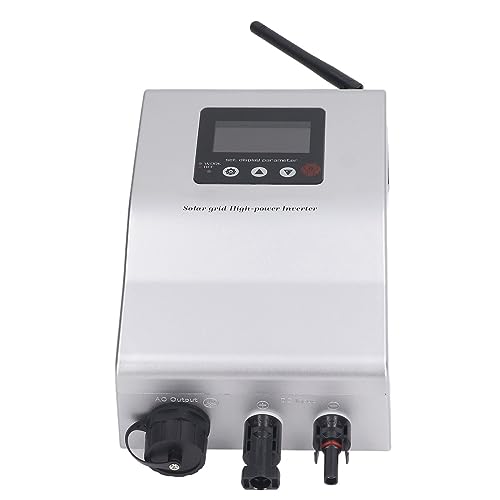

Solar Micro Inverter, Overheat Protection US Plug 110V 220V Remote Control High Efficiency MPPT Solar Inverter for Power (1000W)

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
1. High Efficiency:Pure sine wave output, fully matched with the power grid, efficient and low consumption conversion, with low heat generation.
2. With High Safety: Efficient automatic power point tracking MPPT, reverse power transmission, complete isolation of input and output, ensuring power safety.
3. Flexible Working: High reliability multi unit parallel stacked power generation, easy installation and maintenance, efficient and flexible solar panels matched with the usage area.
4. Premium Design: Panel parameter display function, which separates the display panel from the heat sink and perfectly matches it, with fast heat dissipation and unique and beautiful appearance.
5. Multiple Protection: Island protection will auto stop inverter output in case of power grid failure or power outage. Overheat protection, short circuit protection, overload protection, voltage protection, frequency protection, temperature protection, current protection, etc.

Specification:
Item Type: Solar Grid Tie Micro Inverter
Material: Aluminum Alloy
Plug: US Plug
Voltage: 36V, 17-50V.
AC Voltage: 110V and 220V self identification.
Rated Voltage Range: AC 110V, 80-160V AC. AC 220V, 180-260V AC.
Rated Frequency: 57-62.5Hz at AC 110V, 47-52.5Hz at AC 220V.
Connection Per Circuit String: 8 units, single phase at AC 110V, 10 units, single phase at AC 220V.
Maximum Output Efficiency: 94%
Machine Static Loss Power: <60mW at AC 110V, at 80mW AC 220V.
Environmental Temperature Range: -30~+70℃
Communication : WIFI , mobile APP remote control.
Power Transmission: Reverse transmission, load priority use.
Waterproof Grade: IP60

How to Use:
When wiring, always connect the PV panel first and then connect to the power grid.

Package List:
1 x Solar Grid Tie Micro Inverter
1 x WiFi Antenna
1 x Power Cord
1 x User Manual

Package Dimensions ‏ : ‎ 12.2 x 7.87 x 3.94 inches
Item model number ‏ : ‎ VINGVOxzom1dyae2-14
Date First Available ‏ : ‎ August 31, 2023
Manufacturer ‏ : ‎ VINGVO
ASIN ‏ : ‎ B0CGZQ3W3V

With High Safety: Efficient automatic power point tracking MPPT, reverse power transmission, complete isolation of input and output, ensuring power safety.
Multiple Protection: Island protection will auto stop inverter output in case of power grid failure or power outage. Overheat protection, short circuit protection, overload protection, voltage protection, frequency protection, temperature protection, current protection, etc.
High Efficiency:Pure sine wave output, fully matched with the power grid, efficient and low consumption conversion, with low heat generation.
Flexible Working: High reliability multi unit parallel stacked power generation, easy installation and maintenance, efficient and flexible solar panels matched with the usage area.
