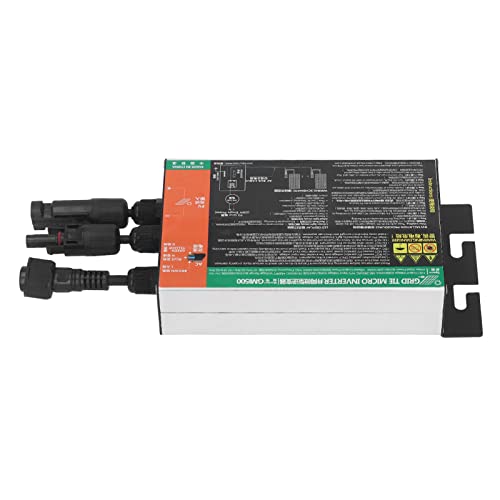

Solar Micro Inverter Power Grid Tie Microinverter MPPT Pure Sine Wave AC 120V for Control,Easy Operaiton Solar MicroInverter Wind Power Inverters (500W)

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
Specification:
Item Type: Solar Micro Inverter
Material: Aluminium Alloy
Output Voltage Waveform: Sine Wave
PV DC Output:
Input Connector Quantity: 1 Set
Maximum Power Point Tracking Range: 24V-40V
Operating Voltage Range: 18V-50V
Maximum DC Input Voltage: 50V
Start Voltage: 18V
AC Output:
Single Phase Grid Type: 120V
Rated AC Voltage: 120V AC
Output Voltage Range: 80V-160V
Rated AC Frequency: 50/60Hz
Output Frequency Range: 50Hz: 47.5-52.5Hz, 60Hz: 57.5-62.5Hz.
Output Power Factor: >0.99
Total Harmonic Distortion Rate of Output Current: Efficiency:
Maximum Conversion Efficiency: 92.00%
CEC Weighted Efficiency: 120V AC: 90%
MPPT Tracking Efficiency: 99.90%
Night Loss: Temperature Range: Ambient Temperature: -40℃ to +65℃, Storage Temperature: -40℃ to +85℃
Waterproof Grade: IP55
Comprehensive Grounding: The PE end of the AC cable is the grounding wire of the equipment, and there is no other grounding port.
Protection Mode: Island protection, voltage protection, frequency protection, temperature protection, current protection, etc.

Package List:
1 x Solar Micro Inverter
1 x AC Cable

Package Dimensions ‏ : ‎ 12.2 x 5.12 x 2.36 inches
Item model number ‏ : ‎ Hyuduors2ce9z8bg-11
Date First Available ‏ : ‎ June 3, 2023
Manufacturer ‏ : ‎ Hyuduo
ASIN ‏ : ‎ B0BH1C6LL6
Country of Origin ‏ : ‎ China

Efficient Work: The highest conversion efficiency can get to 92%, and the stable working performance also has high reliability and .stable and reliable performance, practical, easy to operate and use, has a long service life.it is sturdy and and durable.
Easy Operation: Connect to the grid and use, and the operation is very simple with built in high accuracy instrument that can show the working status.
Reliable Using: Mainly used in small solar systems, the microinverter enables maximum power point tracking to maximize overall output power.We on quality and after service. If you find any quality problem on our item, please feel free to contact us.
Great Material: Adopting premium aluminium alloy material, the micro inverter is not likely to malfunction and very durable for long term use.it can work durable for several years. is designed to meet a variety of needs.
