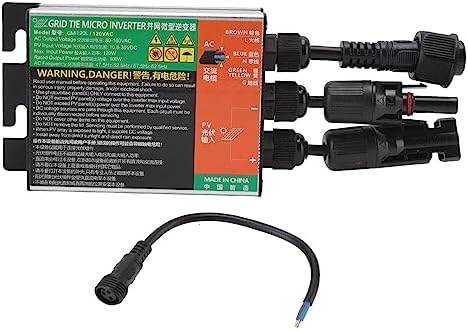

VTOSEN GMI Grid Tie Micro Inversor Solar PV Aluminum Alloy IP55 Multi Protection 20×7.7×3.6cm, Solar Micro Inversor Grid Tie Microinverter(GMI-120L-AC110V)

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
Specification:
Item Type: Grid Tie Micro Inverter
Material: Aluminum alloy
Weight: Approx. 427g/15.06oz
Size: 20×7.7×3.6cm/7.87×3.03×1.42in
Solar PV:
Number of Connectors at Input: 1 set (group)
Maximum Power Point Tracking Range: 12.5V-25V
Operating Voltage Range: 10.8V-30V
Maximum DC Input Voltage: 30V
Starting Voltage: 10.8V
Maximum DC Input Current: 7.5A, 9.37A, 11.25A
AC Output (AC):
Single Phase Grid Type: 120V 230V
Rated AC Voltage: 120VAC 230VAC
Output Voltage Range: 120VAC: 80V-160V at230VAC: 180V-280V
Rated AC Frequency: 50Hz 60Hz
Output Frequency Range: 50Hz: 47.5Hz-52.5Hz at60Hz: 57.5Hz-62.5Hz
Output Power Factor: >0.99
Efficiency:
Maximum Conversion Efficiency: 92.5%
CEC Weighted Efficiency: at120VAC: 90.5% at230VAC: 91.5%
Tracking Efficiency: 99.9%
Nighttime Loss: <700mW
Mechanical Data:
Operating Ambient Temperature: -40℃ to +65℃
Protection Level: IP55
Cooling Method: Natural cooling without fan
Other Features:
Isolation Characteristics: High frequency transformer isolation
Comprehensive Grounding: PE end in AC cable line is the grounding wire of the equipment, no other grounding port.
Protection Mode: Islanding protection, voltage protection, frequency protection, temperature protection, current protection, etc.

Package List:
1 x Micro Inverter
1 x Manual
1 x AC Cable

Grid Tie: This device is a grid tie micro inverter, ensuring proper connection to the grid for efficient electricity generation.
Safety Use: Care must be taken to avoid reversing the positive and negative poles of the solar panel, especially when extending the panel cable.
Installation Notes: Install the inverter in a ventilated, dry, and cool place, away from direct sunlight and rain exposure. Ensure that the PV panel voltage does not exceed the maximum input voltage of the inverter (Voc<50V).
High Performance: Our solar inverter delivers sustainable energy and boasts excellent environmental efficiency, providing an efficient power transmission rate.
