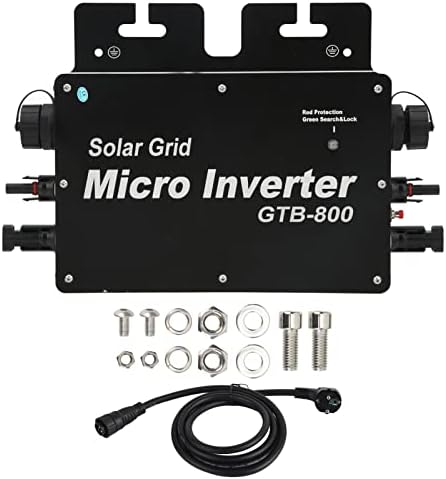

Waterproof MPPT Solar Power Inverter with WiFi APP Monitoring – 800W Micro Grid Tie Inverter for EU Plug 230V Solar Systems

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
Specification: Item Type: Solar Grid Tie Inverter
Material: Aluminum alloy
Gross Weight: 2495g / 88.0oz
Plug: Eu plug
DC Input:
Maximum DC Input Voltage: 52V
Work Voltage Range: 20-50V
Starting Voltage: 18V
MPPT Tracking Voltage: 22-48V
MPPT Tracking Accuracy:> 99.5%
Maximum DC Input Current: 12Ax2
AC Output:
Rated Power Output: 750W
Maximum output power: 800W
Rated voltage: 230V
Output Voltage Range: 190-270V
The Rated AC Current (AT 230V): 3.47A
Rating Output Frequency: 60Hz
Export Frequency Range: 58.9-61.9Hz
Total Harmonic Distortion: <5%
Power Factors:> 0.99
Maximum Number of Branch Circuit Connections: at 230V AC: 10 Set (single phase)
Maximum Conversion Efficiency: 94%
CEC Efficiency: 92%
Night Losses: <80MW
Number of Work Indicators: 1pc working state LED light, 1 pc wifi signal light
Communication Connection Method: Wifi 2.4G
Electric Transmission Mode: Reverse transmission, load preferred use
Heating Method: Natural cooling (non electric fan)
Working Environment: Indoor, outdoor

Package List:

1 x Inverter

4 x Screw
4 x Nut
4 x Accessories
1 x Power Cable
1 x Manual
Real-Time Monitoring via APP: With a built-in WiFi module and intelligent APP monitoring, the MPPT micro solar inverter allows for real-time monitoring of inverter data, providing users with greater control and visibility.
Multiple Safety Protections: The MPPT micro solar inverter offers a range of safety protections, including island protection, over-temperature protection, AC voltage over and under protection, and DC over-voltage protection, ensuring safe and reliable operation.
High Efficiency: Equipped with high-accuracy electronic components and a high-frequency conversion system, the MPPT micro solar inverter delivers strong power output and high efficiency. Additionally, its IP67 waterproof interface and high-strength, anti-aging construction ensure long-lasting performance.
Effective Heat Dissipation: The MPPT micro solar inverter features an aluminum alloy housing that provides excellent heat dissipation performance, protecting the inverter and ensuring a long service life.
