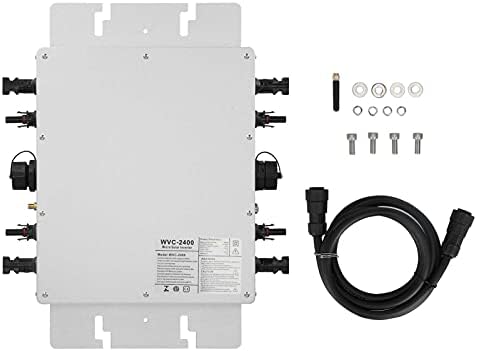

Waterproof Solar Grid Tie Micro Inverter APP Monitor Solar Converter Pure Sine Waving Solar Microinverter

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
Specification:
Item Type: Grid Tie Micro Inverter
Material: Aluminum alloy
Model: WVC-2400
Recommend Use Component: 4 x 750W
Output Voltage Mode: 120V or 230V automatic adaptation
Solar Panel Open Circuit Voltage: 30-54V
Peak Power Tracking Voltage: 22-60V
Minimum and Maximum Start Voltage: 22-60V
Maximum DC Short Circuit Current: 4 x 28A
Maximum Input Working Current: 4 x 23A
Operating Temperature Range: -40℃-+65℃
Waterproof Rating: IP65
Cooling Method: Self cooling
Power Transmission Mode: Reverse transmission, load priority use
Communication Mode: WiFi
Monitoring System: Mobile APP
Product Size: Approx. 370 x 300 x 41.6mm / 14.6 x 11.8 x 1.6in

Package List:
1 x Inverter
1 x User Manual
1 x AC Connection Cable
4 x Fixing Screws
4 x Fixing Nuts
4 x Fixing Gaskets
4 x Fixing Washers
1 x Communication Antenna

How to Use:
1. Install and fix the inverter on the bracket of the photovoltaic panel with the screws attached to the machine
2. Connect the DC connection plug on the photovoltaic panel to the DC input terminal of the inverter with positive and negative poles
3. Open the waterproof cover of the AC output connector of the inverter and connect the AC cable to the AC waterproof plug
4. Connect the AC output cable to the AC main cable
5. Repeat the first to third steps to install and connect all inverter interfaces
6. Connect the AC main cable to the utility grid to start use

Note:
You can purchase a professionally customized AC bus with a T type connector. Use this AC bus as the AC bus for each branch. Connect it hand in hand to form a modular micro inverter branch wiring system.

Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.

SAFE TO USE – The input and output are completely isolated, the electricity is safer, the output voltage mode 120V and 230V automatically adapt.
BUILT IN ELECTRICITY METER – Built in high accuracy electricity meter, 5G IoT platform data management, forward full bridge topology high frequency modulation grid connected mode.
GOOD HEAT DISSIPATIO – The solar inverter body is made of aluminum alloy, which has good heat dissipation performance and is easy to install and maintain.
REMOTE APP MONITOR – Reverse power transmission, with smart phone APP monitoring system function, with high accuracy and reliability.
