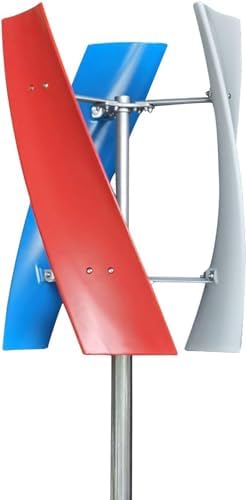

Wind Turbine Generator Kit 400W 12V, Wind Turbine Generator Power Kit for Marine, RV, Home, Windmill Generator Suit for Hybrid Solar Wind System

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
Specification
Condition: New
Controller System: Electromagnetism
Starting Wind Speed: 1.3m(12inch)/s
Cut-in Wind Speed: 2.5m(98inch)/s
Rated Wind Speed: 11m(433inch)/s
Max Instantaneous Wind Speed: ≤40m(1575inch)/s
The Instantaneous Maximum Wind Speed: ≤45m(1772inch)/s
Blades Quantity: 3 (with Different Colors)
Diameter of Blades: 0.6m/24inch
Blades Height: 0.8m/31inch
Speed Regulation: Automatic
Rated Voltage: 12V/24V
Rated Power: 400W
Max Power: 450W
Generator Protection Grade: IP67
Work Environment Temperature: 25 to 45℃+
Product Assembly Weight: <10kg/22lbs
Over-speed Protection: Electromagnetic Brake
Blade Material: Glass Fiber
Generator: Maglev Generator
Service Life: 10-15 Years
Installation Instructions: Not Included

Installation
1. Check all the parts of the wind turbine, which includes 6 brackets and 3 blades in total.
2. Place the wind turbine vertically.
3. Connect brackets with blades by the bolt. Load the upper cover plate and lower cover plate.
4. Fix the bolt in the mounting hole (at the end of the bracket) from the outside of the wind blade.
5. Tighten all the bolts of blades and brackets, and toggle the blades. It should not have abnormal noise or jamming. Tighten the nut (under the upper cover plate of the wind turbine) to make the upper cover plate tightly fixed.
6. Align the flange hole of the wind turbine with the flange hole on the tower pole

Package Included
1 x Wind Turbine
1 x Controller
3 x Blades (White, Red, Blue)
1 x Bag of Screws to Connect the Main Body
1 x Bag of Screws for Connecting the Bracket Blades
Other Accessory for Assembly

Low Starting Wind Speed: Its starting wind speed is lower than other wind turbines, and the rising arc of power generation is gentle, so it can generate more power than others within a certain range.
Three-phase AC Permanent Magnet Generator: The wind turbine with a low-torque and high-power intelligent tracking microprocessor can regulate current and voltage efficiently. It significantly increases wind energy utilization and annual power production.
Smooth Running: The spiral blades are aerodynamically designed to make the rotor run smoothly and reliably, which leads to stable electricity generation. The double bearing and low vibration also ensure more stable operation.
Application: Due to its compact shape, low starting wind speed, and large windward area, the wind turbine can generate electricity at lower wind speeds.It is well suited for boats, gazebos, cabins or mobile houses, and other energy supplies for homes, businesses and industry.
