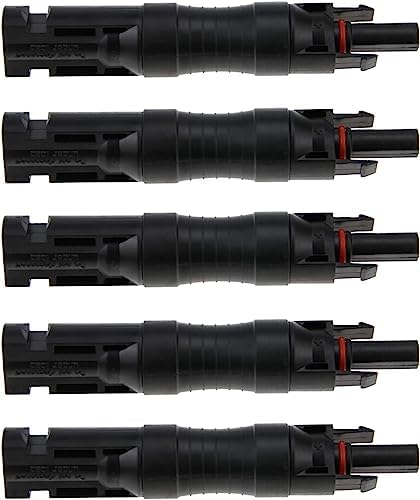

ZOOKOTO 5pcs Solar Panel PV Connector with Built in 10A 15A 20A 25A 30A 1000V Diode Waterproof Solar Panel Cable Connector (25A 1000V Not 25SQ045)

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]

Specifications:
Rated Current: 25A
Rated Voltage:1000V DC
Test Voltage:6000(50Hz,1min)
Overvoltage Category/Polution degree:CATIII/2
Contact resistance of plug connectors:0.5mΩ
Contact meterial :Coppper,Ag plated
Insuation material:PPO
Flame class:UL94-VO
Type: Male to Female
Material: PA/PC
Certifications: TUV
Size: 13.5 x 2 Cm(L*D)
Color: Black
Net Weight: 35g

Package Content:
5 x 25A 1000V Diode Connector
For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
The end product must provide protection from electric shock.
Unplugging under load: PV plug connections must not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
Disconnected connectors should be protected from dirt and water with sealing caps.
Compatible with PV cables with different insulation diameters，Material: PA/PC; Certifications: TUV
With IP67 Waterproof, excellent aging resistance and UV endurance, it can be used in harsh environment
Changing Diode is fast and easy. Simply unscrew the Diode Holder, remove the old Diode, insert the new Diode, and screw the Diode Holder shut
10amp, 15amp, 20amp 25amp and 30amp 1000V Diode options available, if there is any question, just contact us
