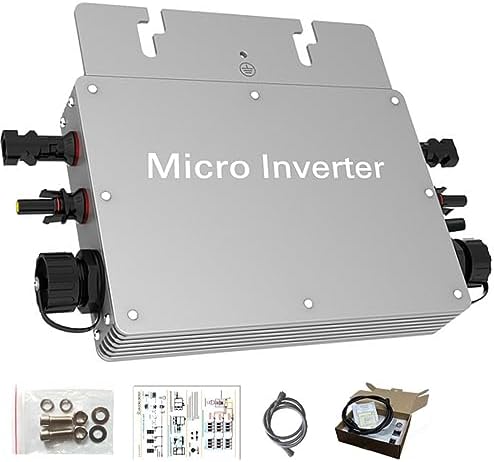

ZXSYYDS Grid Tie Micro Inverter, Solar Micro Inverter,Solar PV Grid Tie Micro Inverter IP65 Waterproof MPPT Grid Connected Inverter,Solar Photovoltaic Power System Power Inverter,700W

Price: [price_with_discount]
(as of [price_update_date] – Details)

[ad_1]
1. IP65 waterproof exterior (mounted on the bottom of the solar panel).
2. AC data monitoring screen.
3. Built-in powerful Maximum Power Point Tracking (MPPT).
4. Made of aluminum alloy for better heat dissipation
5. Support single phase or three phase connection.
6. simple wiring.
7. high-precision phase detection; over and under voltage protection; over and under frequency protection; islanding protection. Parameter.

Specification:
Input parameters: WVC-600W/WVC-700W/WVC-800W
Solar panel open circuit voltage range: 30-54 VOC/ 30-60 VOC
Peak power tracking voltage: 22-60V
Minimum/maximum starting voltage: 22-60V
Maximum DC short circuit current: 2*15A/2*16A/2*18A
Maximum input operating current: 2*12A/2*14A/2*16A

Output parameters: @120VAC/@230VAC
Output peak power: 600 w/700 w/800 w
Rated output power: 580 w/680 w/780 w
Rated output current: 5A/2.6A /5.9A/3.05A/ 6.7A/3.5A
Rated voltage range: 80-160VAC/180-280VAC
Rated Frequency Range: 48-51Hz/58-61Hz
Power Factor: >95%
Number of connected units per string: 6 units (single phase)/6 units
Output Efficiency: @120VAC/@230VAC
MPPT static efficiency: 99.50%

Note:Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Packing list:
1 * Inverter
1 x communication antenna
2 sets x mounting screws
1 x AC output line
1 x installation manual

Service: If you have any questions after receiving the package, please contact us as soon as possible, we will give you a satisfactory answer at any time.
❤【Excellent Performance】 Accurately track the maximum power point. The MPPT algorithm can optimize the energy harvesting of solar panels. It accurately captures and collects sunlight and locks the maximum output power point, greatly increasing the power generation. With the monitoring system, it can help you monitor the power generation efficiency of the power plant and reduce labor costs.
❤【Aluminum alloy housing】The solar grid connector micro inverter adopts IP65 waterproof level to prevent raindrops from entering completely, and the aluminum alloy housing can effectively prevent rainwater from eroding the surface. The input and output are completely isolated from power consumption, which is more secure and reliable.
❤【Easy to carry】 Light weight and easy installation, multiple inverters can be stacked at will to form a single-phase parallel stacking system. Made of high-quality aluminum alloy and electronic component materials, it requires almost no maintenance.
❤【Service】If you have any questions during installation or use, please email us and we will be happy to help you.
